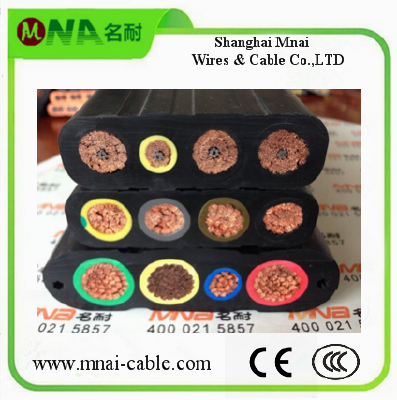

Shanghai Mnai high quality flat cable

Shanghai Mnai high quality flat cable

  • Min.Order Quantity: 200
  • Supply Ability: 200 per Month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
Get Latest Price:
  • *Quantity: Meter
| Factory
Experience:2013-10-29
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  China
  • Brand Name:  MNAI
  • Model Number:  YFFBG
  • Weight: 1.000 kg

Applications:
As connecting and control cable for cranes and conveyors,it is suitable for the places of railway stations, crane and other related situations. It is suitable as a control and connection cable for cranes and conveyors on building sites, container goods railway stations and dockyards where operating conditions are rough.

Properties:
Sheath: special polychloreprene(Butadiene-acrylonitrile rubber),it remains fexible at -15°C flame resistance and self-extinguishing .

  Structure:

 Conductor: superfine copper strands acc. to VDE 0295,class 5

Insulation: mixed pvc, resistant to oil, flame resistance and self-exit inguishing
Colour: acc. to 227IEC (brown, blue, black, green/yellow)  5 cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber; resistant to oil, flame retardant  and self-exitinguishing;
Colour: black(RAL9005) OR Grey(RAL 7001)
Standard: acc. to VDE 0482, part 265-2-2 resp.EN 50265-2-1 and  IEC60332-1
Technical data:
Rated voltage: ≤ 1.5mm: 300/500V ≥ 1.5mm: 450/750V
Test voltage: ≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V
Minimum bending radius: 0.3m≤L≤0.6M
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1:1993 test
Passedstandard: GB5023.6 , IEC60227-6, EN50214.
Temperature range: -15°C to +70°C





YFFB (Parallel) free suspension length must not exceed 35 meters, and the lift speed 1.6m/s.







YFFB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.

  • Size:  1
  • Place of Origin:  China
  • Brand Name:  MNAI
  • Model Number:  YFFBG
  • Weight: 1.000 kg
